Casa /Produtos/Cortina de ar de Theodoor/Centrifugal Fan Air Curtain with 2000m³/h Airflow 2-Speed Fan and 20m/s Air Velocity for Commercial Use

Centrifugal Fan Air Curtain with 2000m³/h Airflow 2-Speed Fan and 20m/s Air Velocity for Commercial Use

1
MOQ
$99-199
preço
Centrifugal Fan Air Curtain with 2000m³/h Airflow 2-Speed Fan and 20m/s Air Velocity for Commercial Use
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Tensão operacional: 230 Vac
Tipo de montagem: Montagem de parede / janela
Fluxo de ar: 2000m³/h
Peso: 15 kg
Tipo de ventilador: Fã centrífugo
Material: Alumínio
Velocidade do ventilador: 2 velocidades
Velocidade do ar: 20m/s
Tipo de controle: Remoto+Buttom
Altura de instalação: 3,5-4m
Freqüência: 50 Hz
MAX POWER DE ENTRADA: 600 w
Volume de ar: 2850 m3/h
Nível de ruído: 63 dB
Dimensões: 1800 × 215 × 230 mm
Destacar:

2000m³/h Airflow Air Curtain

,

2-Speed Fan Commercial Air Curtain

,

20m/s Air Velocity Centrifugal Fan Air Curtain
Informação básica
Lugar de origem: Guangdong, China
Marca: Theodoor
Condições de Pagamento e Envio
Descrição de produto

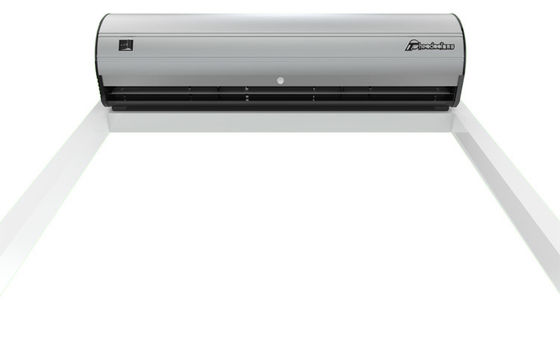

Centrifugal Fan Air Curtain FM-40 Series for Commercial & Industrial Doors
Premium Air Curtain Solution for 3.5-4m Doorways
Designed to maintain indoor climate conditions while saving energy on air conditioning systems. Ideal for luxury hotels, supermarkets, stadiums, and airport terminals.
Key Features
  • Stylish aluminum body construction - rustproof and maintains appearance
  • Screw-free design for elegant, seamless exterior
  • High-performance motor for reliable operation

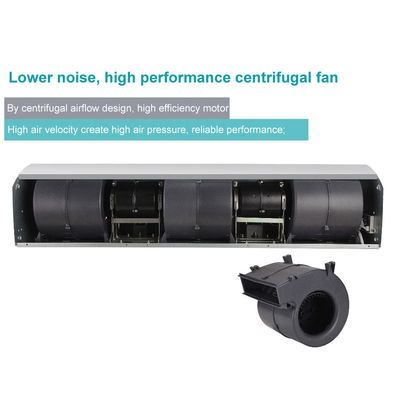

  • Centrifugal turbine technology for superior air velocity

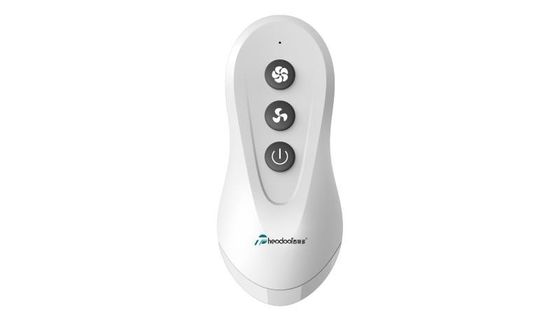

  • Advanced remote control with high/low speed settings
  • Optimized for 3.5-4m installation height
Technical Specifications
Model Dimension (mm) Frequency (Hz) Voltage (V~) Max Input Power (W) Air Volume (m³/h) Air Velocity (m/s) Noise (dB) Net Weight (kg)
FM-4009-L/YS6 900×220×240 50 220-240 300/270 1400/1000 20/16 57/54 13.5
FM-4010-L/YS6 1000×215×230 50 220-240 320/290 1550/1100 20/16 57/54 13.5
FM-4012-L/YS6 1200×220×240 50 220-240 400/370 1900/1500 20/16 58/55 16
FM-4015-L/YS6 1500×220×240 50 220-240 500/470 2300/1900 20/16 61/58 20.5
FM-4018-L/YS6 1800×215×230 50 220-240 600/570 2850/2250 20/16 63/61 23.5
Product Variations
Centrifugal Fan Air Curtain with 2000m³/h Airflow 2-Speed Fan and 20m/s Air Velocity for Commercial Use 0 Centrifugal Fan Air Curtain with 2000m³/h Airflow 2-Speed Fan and 20m/s Air Velocity for Commercial Use 1 Centrifugal Fan Air Curtain with 2000m³/h Airflow 2-Speed Fan and 20m/s Air Velocity for Commercial Use 2
Primary Functions
  • Effective dust and insect barrier
  • Odor isolation between spaces
  • Energy savings for climate control systems
  • Comfortable heated air flow option

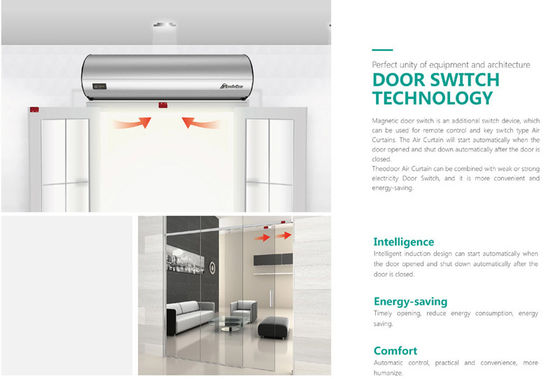

Installed above entryways, our air curtains create an invisible barrier that maintains indoor temperature and humidity levels while preventing outdoor contaminants from entering. Particularly effective when paired with air conditioning systems to enhance energy efficiency.
Centrifugal Fan Air Curtain with 2000m³/h Airflow 2-Speed Fan and 20m/s Air Velocity for Commercial Use 3 Centrifugal Fan Air Curtain with 2000m³/h Airflow 2-Speed Fan and 20m/s Air Velocity for Commercial Use 4
Packaging & Shipping
Centrifugal Fan Air Curtain with 2000m³/h Airflow 2-Speed Fan and 20m/s Air Velocity for Commercial Use 5
Our Services
  • OEM and ODM solutions available
  • Custom label and packaging design
  • Comprehensive shipping arrangements
  • After-sales spare parts support
Selection Guide
Consider these factors when choosing an air curtain:
  • Specific application requirements
  • Door height and width
  • External wind conditions
  • Building static pressure
  • Door structure and design
  • Ambient temperature range
  • Unit size and specifications
  • Aesthetic design preferences
  • Noise level considerations
