Explosion Proof Air Curtain with 380V/3N/50 HZ Power Supply and 16m/s Air Velocity for 0.9m, 1.2m, 1.5m Door Sizes

50
MOQ
$399
preço
Explosion Proof Air Curtain with 380V/3N/50 HZ Power Supply and 16m/s Air Velocity for 0.9m, 1.2m, 1.5m Door Sizes
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Tipo de montagem: Montagem de parede / janela
Tipo de motor: Motor CA.
Peso: 20 kg
Tipo de ventilador: Fluxo cruzado
Motor Standard: IP54, à prova de explosão
Fonte de energia: 380V/3N/50 HZ
Velocidade do ar: 16 m/s
Material de tampa: Aço
Altura de instalação: 3-5m
Poder de entrada: 320W, 450W, 590W
Volume de ar: 2420 m3/h, 3350 m3/h, 4280 m3/h
Nível de ruído: ≤68 dB, ≤70 dB, ≤72 dB
Grau à prova de explosão: Ex dbⅱc t4gb
Opções de tamanho: 0.9m, 1.2m, 1.5m
Tipo de motores de ventilador: AC
Destacar:

380V/3N/50 HZ Power Supply Air Curtain

,

16m/s Air Velocity Door Air Curtain

,

0.9m

,

1.2m

,

1.5m Size Explosion Proof Air Curtain
Informação básica
Lugar de origem: Guangdong, China
Marca: Theodoor
Condições de Pagamento e Envio
Descrição de produto
Commercial and Industrial Explosion Proof Air Curtain
High-performance explosion-proof air curtain designed for gate sizes 0.9m, 1.2m, and 1.5m, suitable for hazardous environments in commercial and industrial applications.
Key Features
  • Robust Construction: All-metal powder-coated anti-rust thick body with square frame welded structure for enhanced durability and stability.
  • High-Performance Airflow: Metal cross-flow fan wheel delivers superior air volume, stable output, and effective isolation.
  • Certified Explosion-Proof: Complete unit and motor explosion-proof certified (N0.CJEx23.0770X, N0.CJEx23.0733X).
  • Advanced Safety: Equipped with explosion-proof terminal box and certified pure copper motor, tested for 8000+ hours without failure.
  • Superior Protection: Explosion-proof mark Ex dbⅡC T4Gb (higher grade than standard Ex dbⅡB T4 machines).
  • Versatile Applications: Suitable for Zone 1 & 2 explosive gas environments including biopharmaceutical facilities, chemical plants, laboratories, gas stations, and warehouses.
  • Installation Height: 3-5m optimal mounting range.
Technical Specifications
Model Size (mm) Voltage (V/Hz) Input Power (W) Air Volume (m³/h) Air Speed (m/s) Noise (dB) Net Weight (Kg)
FB-1509A 990×241×260 380V/50Hz 320 2420 16 ≤68 20
FB-1512A 1260×241×260 380V/50Hz 450 3350 16 ≤70 25
FB-1515A 1550×241×260 380V/50Hz 590 4280 16 ≤72 31

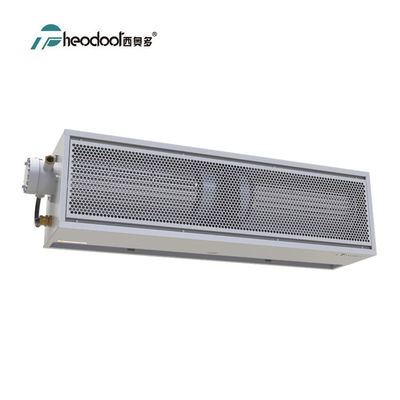

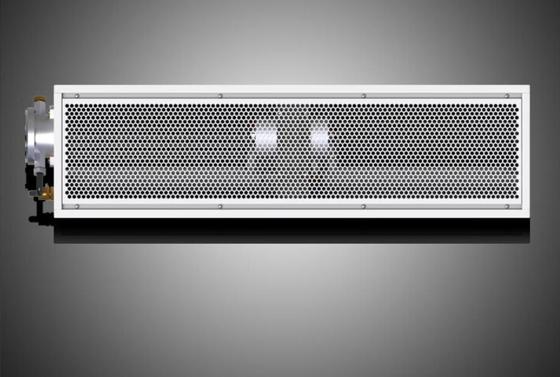

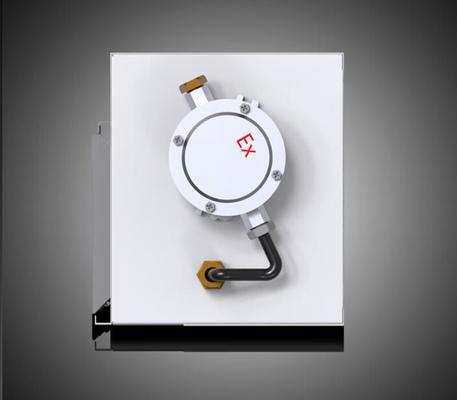

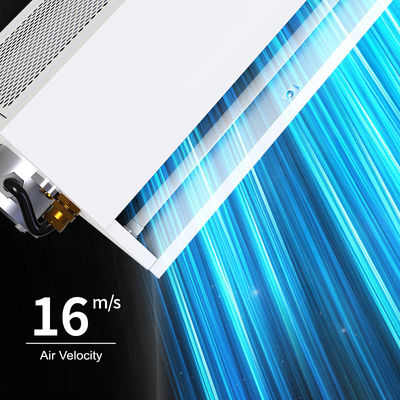

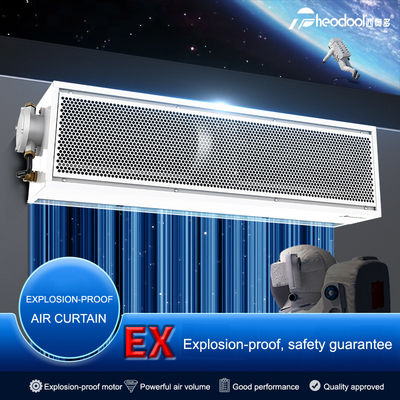

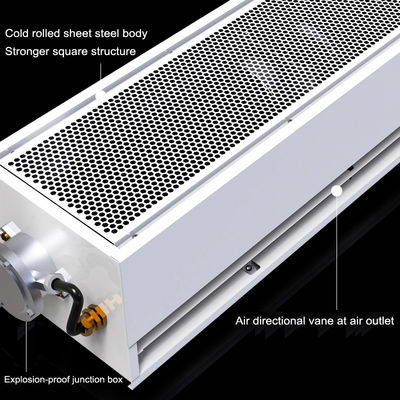

Product Images
Explosion Proof Air Curtain with 380V/3N/50 HZ Power Supply and 16m/s Air Velocity for 0.9m, 1.2m, 1.5m Door Sizes 0
Explosion Proof Air Curtain with 380V/3N/50 HZ Power Supply and 16m/s Air Velocity for 0.9m, 1.2m, 1.5m Door Sizes 1
Explosion Proof Air Curtain with 380V/3N/50 HZ Power Supply and 16m/s Air Velocity for 0.9m, 1.2m, 1.5m Door Sizes 2
Frequently Asked Questions
What are the main functions of an Air Curtain?
  • Dust-proof and insect prevention
  • Odor isolation
  • Energy saving
  • Comfortable heating
How to select the suitable air curtain?
Consider these factors when selecting an air curtain:
  • Application requirements
  • Door height and width
  • External wind conditions
  • Building static pressure
  • Door structure
  • Ambient temperature
  • Unit size and design
  • Noise level specifications
  • Power consumption
