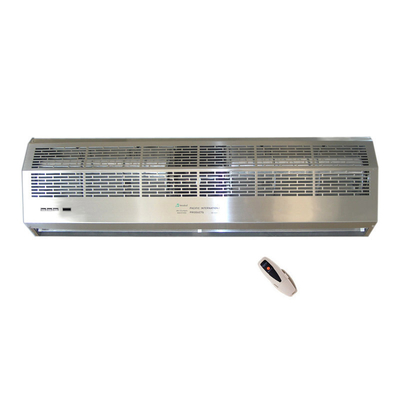

Titan 1 Series Stainless Steel Air Curtain 2000m³/h 230VAC

10
MOQ
$99
preço
Titan 1 Series Stainless Steel Air Curtain 2000m³/h 230VAC
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Operating voltage: 230 VAC
Mounting type: Wall / Window Mount
Airflow: 2000m³/h
Weight: 15 KG
Fan type: Cross flow type
Unit length: 600 to 2000 mm
Color: Stainless steel
Fan speed: 2 speed
Motor power: 140-350 W
Air volume: 840-3600 m3/h
Air speed: 9-13 m/s
Noise level: 54-71 dB
Dimensions: 600-2000x180-260x215-260 mm
Frequency: 50Hz
Continuous operation: 5000 hours
Destacar:

Titan 1 Series stainless steel air curtain

,

Compact air curtain 2000m³/h

,

230VAC air curtain with warranty
Informação básica
Place of Origin: Guangdong, China
Marca: Theodoor
Condições de Pagamento e Envio
Descrição de produto
Titan 1 Series Air Barrier Over Door Stainless Steel Air Curtain
Entryway 72 Inch Residential Air Curtain / Door Air Cutter With Steel Cover
Specifications
Model Size (mm) Volt./ Freq. Motor power(W) Air volume (m3/h) Air speed (m/s) Noise (dB) N.W(kg)
Hi Lo Hi Lo Hi Lo
FM-1206SA1600x180x215220v~ 50Hz140908406809-1155548.5
FM-1209SA1900x180x21516011014001100575510.5
FM-1210SA11000x180x21518013016001300585611.5
FM-1212SA11200x180x21520015019001600585613.5
FM-1215SA11500x180x21523018025002000595715
FM-1218SA11800x180x21530025032002600605820
FM-1220SA12000x180x21535030036002900615922
FM-1509SA1900x220x260220v~ 50Hz2301802000160010-13676515
FM-1512SA11200x220x26035030028002200696719
FM-1515SA11200x220x26043038036002800716923
Key Features
  • Compact design with stainless steel cover, easy installation and simple maintenance

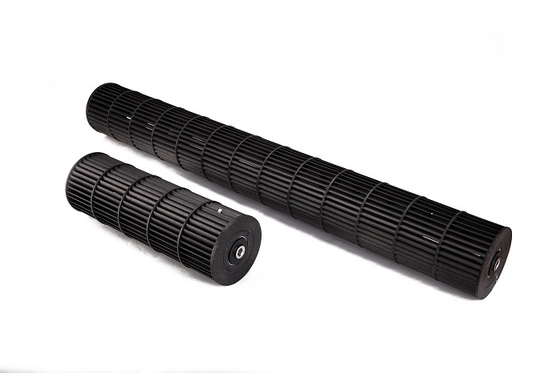

  • Optimized fan wheel provides stable & even air flow with large air volume and low noise performance
  • Reliable motor design with overheating protector and safety operation of 5000 hours continuously without defect

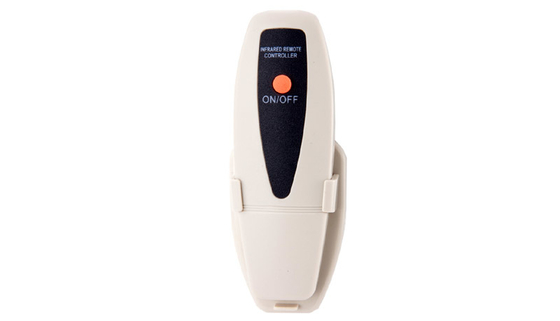

  • Remote control or touch switch operation with adjustable high and low air velocity settings
  • Two series available with different air velocities (9-11m/s, 10-13m/s) suitable for cafeterias, bakeries, restaurants, retail shops, department stores, and sports centers
Titan 1 Series Stainless Steel Air Curtain 2000m³/h 230VAC 0 Titan 1 Series Stainless Steel Air Curtain 2000m³/h 230VAC 1
What is an Air Curtain?

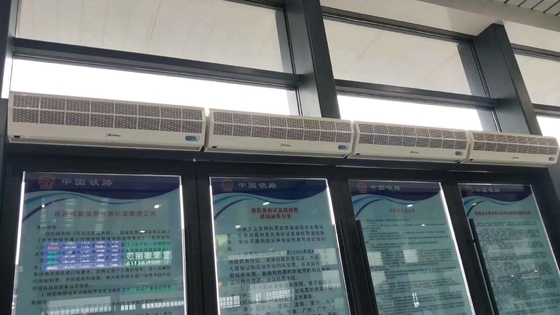

Theodoor Air Curtains are installed above entryways of stores, restaurants, hotels and other commercial spaces. They effectively isolate indoor and outdoor environments, maintaining temperature and humidity levels. Particularly useful in air-conditioned spaces, they help conserve energy by reducing the load on refrigeration equipment. Additionally, air curtains prevent the intrusion of dust, pests, and harmful fumes from outside, maintaining a comfortable and clean indoor climate.
Titan 1 Series Stainless Steel Air Curtain 2000m³/h 230VAC 2 Titan 1 Series Stainless Steel Air Curtain 2000m³/h 230VAC 3
Packaging & Shipping
Titan 1 Series Stainless Steel Air Curtain 2000m³/h 230VAC 4
Our Services
  • OEM and ODM services
  • Custom label and box design
  • Shipping arrangement
  • After-sales spare parts support
Titan 1 Series Stainless Steel Air Curtain 2000m³/h 230VAC 5 Titan 1 Series Stainless Steel Air Curtain 2000m³/h 230VAC 6
Frequently Asked Questions
What are the main functions of an Air Curtain?
  • Dust-proof and insect prevention
  • Odor isolation
  • Energy saving
  • Comfortable heating
How to select a suitable air curtain?
Several factors should be considered when selecting an air curtain:
  • Application requirements
  • Door height and width
  • Outside wind conditions
  • Building static pressure
  • Door structure
  • Ambient temperature
  • Air curtain size specifications
  • Design and aesthetic requirements
  • Noise level limitations
  • Power consumption considerations
